Equivalent Designations: UNS N07750
Characteristics: Corrosion Resistance
Standard: ASME, ASTM, EN, UNS, GB, DIN, JIS
Certification: ISO, CE, ROHS
Payment Terms: T/T, L/C, Paypal, Western Union
Inconel x750 | ||||||||||||||
Chemical Composition | ||||||||||||||
% | Ni | Cr | Fe | Cu | C | Mn | Si | S | Ti | Nb+Ta | Al | Co | Cu | |
min | 70.0 | 14.0 | 19.0 | 5.0 |
|
|
|
| 2.25 | 0.70 | 0.40 |
|
| |
max |
| 17.0 | 21.0 | 9.0 | 0.08 | 1.00 | 0.50 | 0.010 | 2.75 | 1.20 | 1.00 | 1.00 | 0.50 | |
Physical Performance | ||||||||||||||
Density | 8.28g/cm3 | |||||||||||||
Melting Point | 1393-1427℃ | |||||||||||||
Product | ASTM |
Bar and forge piece | B 637 |
Inconel x750 characteristics:
It is a kind of nickel-base high-temperature alloy mainly use γ to harden aging.
Under 980℃, good corrosion resistance and oxidation resistance.
Under 800℃, higher strength.
Under 540℃, good relaxation resistance. Good Molding performance and welding performance.
Inconel x750 Application：
The alloy is mainly used in the manufacture of the aircraft engine under 800℃ and requires the high strength of the flab flat spring and helical spring.
It can also be used to make parts such as turbine blades.

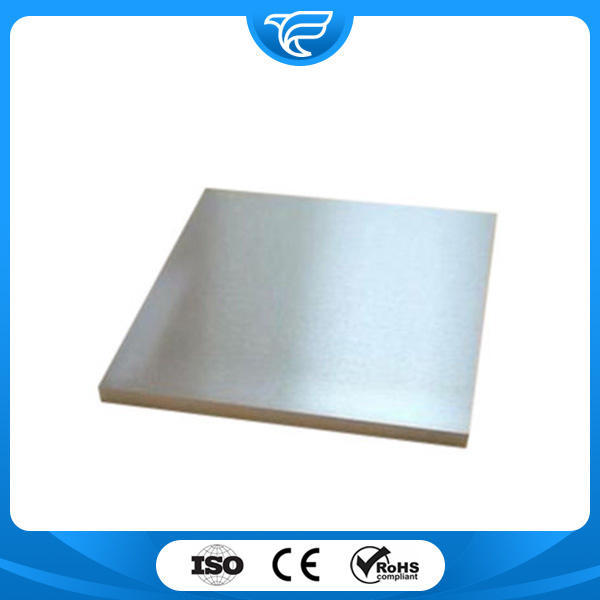

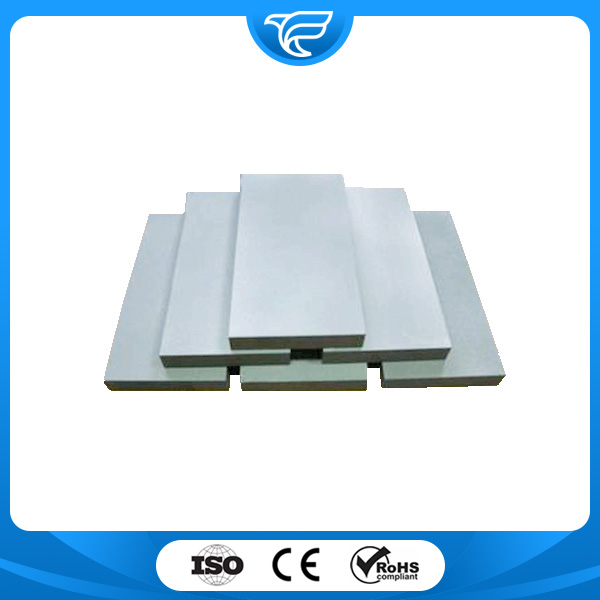

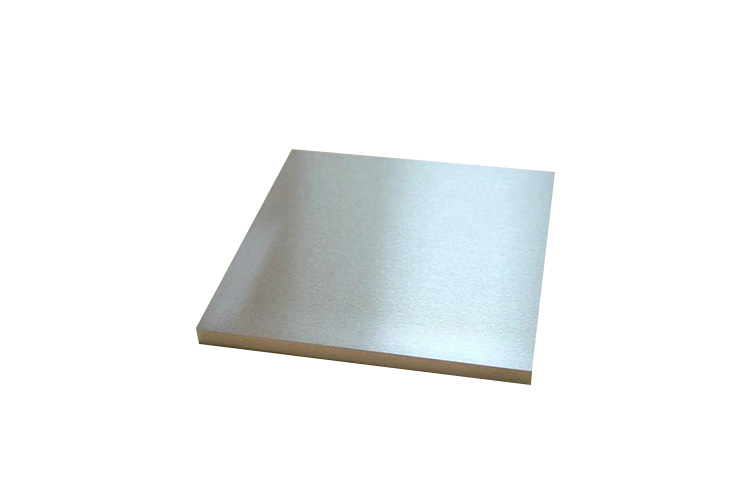

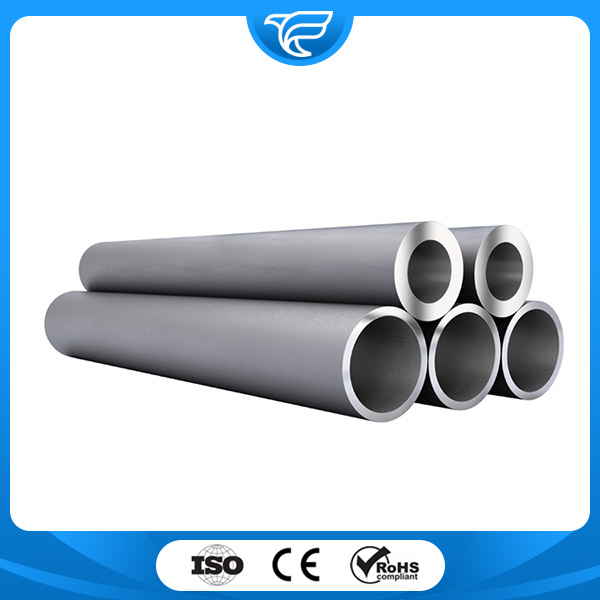

The available varieties include plate, strip, bar, forging, ring, wire and pipe.
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
