Stainless Steel Wire Rope 1×19

OEM: Available
Standard: EN12385, DIN, GB/T9944-2002, RR-W-410G
Product Certification: ISO, CE, RoHS
Payment Terms: T/T, L/C, PayPal, Western Union

Send Inquiry

Product Details

Specifications

Construction

1x19, 7x7, 7x19

Grade

AISI304, AISI316

HS Code

73121000

Diameter

0.8mm-40mm

Tensile strength

1570N/mm2, 1670N/mm2, 1770N/mm2

Lay direction

R.H.R.L or L.H.R.L

Length

100m, 200m, 250m, 305m, 500m, 1000m

Features

Flexible, Durable, Bright surface, High Tensile Strength, Good Rust and Corrosion Resistance

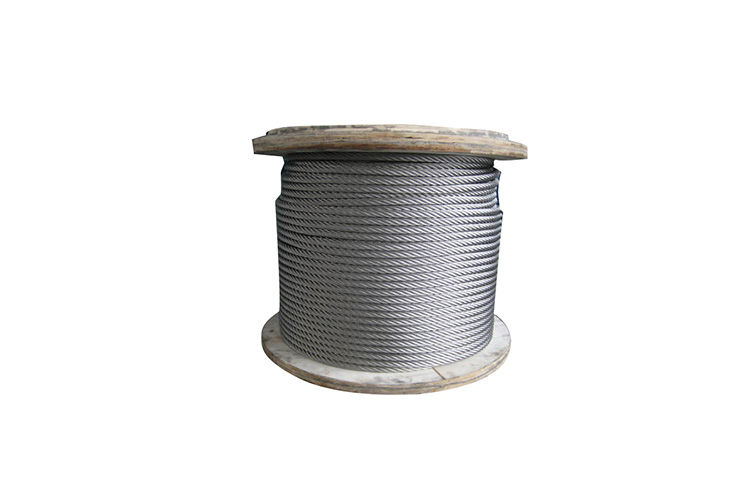

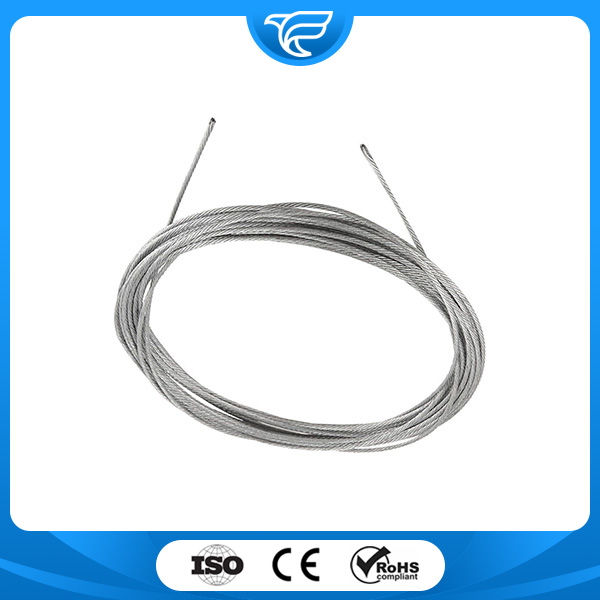

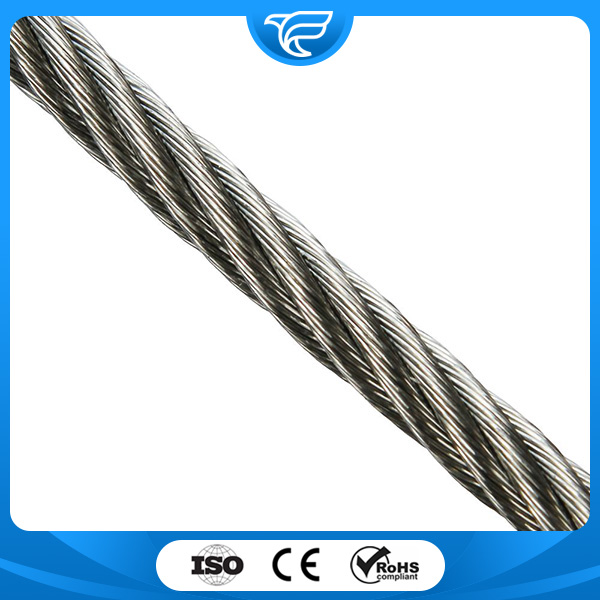

Product Show



Product Application


Stainless Steel Wire Rope 1×19 is a very poplar construction. Stainless Steel Wire Rope 1×19 is excellent breaking load and low stretch characteristics along with its’ aesthetic appeal make Stainless Steel Wire Rope 1×19 a favourite for small diameter applications, examples of which are shown below:

·General engineering applications

·Small diameter wire rope slings

·Stay wires

·Fencing rope

·Catenary wire

·Garage door cables

·Standing rigging

·Hanging signs

·Ski-lifts


Packaging and Delivery


1. Standard Exporting package.

2. Original package or neutral package.

3. According to clients ' needs.

4. Shipped in10-35 days after payment.


FAQ


Price

Q: How can I get the price?

A: You can contact us through sending inquiry, calling, or get details price list by E-mail.

Delivery

Q: How long is the delivery time?

A: It depends on quantity. Usually, 10-35 working days.

Sample

Q: Can I get sample to check the quality?

A: Of course. We can supply sample, and free for some small value products.

OEM

Q: Do you provide OEM service?

A: Yes, we do. Customized design is available.

Payment

Q: What is your payment term?

A: L/C, T/T, PayPal, Western Union, etc.

Certificate

Q: What certificate do your products have?

A: CE, ISO9001, RoHS, SGS, etc.

Commonly used on stationary rigging on sailboats, guy wires and push pull control cables. 1x19 is best suited for stationary applications.

316 stainless steel cable offers the most corrosion resistance and is ideal for marine environments, but lower strength than grade 304 stainelss steel and galvanized cable.

Type 316 stainless steel 1 x 19 wire is an excellent blend of strength and corrosion resistance. Because of its molybdenum content, this T316 stainless steel wire provides additional resistance to pitting and crevice corrosion and is ideal for standing rigging. Offered in a wide range of sizes to match different rigging loads each diameter is available in lengths up to 500'. Reduce the chances of being surprised during routine rigging inspections by using an traditional 1 x 19 wire with added corrosion protection.
