05Cr17Ni4Cu4Nb Precipitation Stainless Steel

Characteristics: High Strength
Standard: ASME, ASTM, EN, UNS, GB, DIN, JIS
Certification: ISO, CE, ROHS
Payment Terms: T/T, L/C, Paypal, Western Union

Send Inquiry

Product Details

05Cr17Ni4Cu4Nb precipitation  stainless steel martensitic precipitation-hardened stainless steel. 05Cr17Ni4Cu4Nb  precipitation stainless steel performance characteristic is easy to adjust the  strength level, can be adjusted by changes in heat treatment process,  martensite phase transformation and aging treatment of metal forming  precipitation hardening phase is the main reinforcement method, stainless steel  attenuation performance is good, strong corrosion fatigue resistance and water  resistance.



05Cr17Ni4Cu4Nb Precipitation Stainless Steel    Chemical Composition

C

Mn

Si

Ni

P

S

Cr

≤0.07

≤1.00

≤1.00

3.00-5.00

≤0.035

≤0.030

15.5-17.5





Strength of extension σb(Mpa): 480℃  aging,≥1310; 550℃ aging,≥1060; 580℃ aging,≥1000;620℃ aging,≥930
 Offset yield strength σb(Mpa): 480℃  aging,≥1180; 550℃ aging,≥1000; 580℃ aging,≥865;620℃ aging,≥725
 Elongation δ5(%): 480℃  aging,≥10; 550℃ aging,≥12; 580℃ aging,≥13;620℃ aging,≥16
 Percentage reduction of  area ψ(%):480℃ aging,≥40;  550℃ aging,≥45; 580℃ aging,≥45;620℃ aging,≥50
 Hardness: solid  solution,≤363HB&≤38HRC; 480℃  aging,≥375HB&≥40HRC; 550℃ aging,≥331HB&≥35HRC; 580℃ aging,≥302HB&≥31HRC;620℃ aging,≥277HB&≥28HRC


Product Description




05Cr17Ni4Cu4Nb precipitation stainless steel is precipitate, quench  water, martensite stainless steel, and this grade has high strength, hardness  and anti-corrosion characteristics. After heat treatment, the mechanical  properties of the products are improved, and the pressure strength can reach up  to 1100-1300 mpa (160-190 ksi).This level cannot be used above 300℃ (570F) or very low temperature. It has  good corrosion resistance to atmosphere and dilute acid or salt, and its  corrosion resistance is the same as 304 and 430.

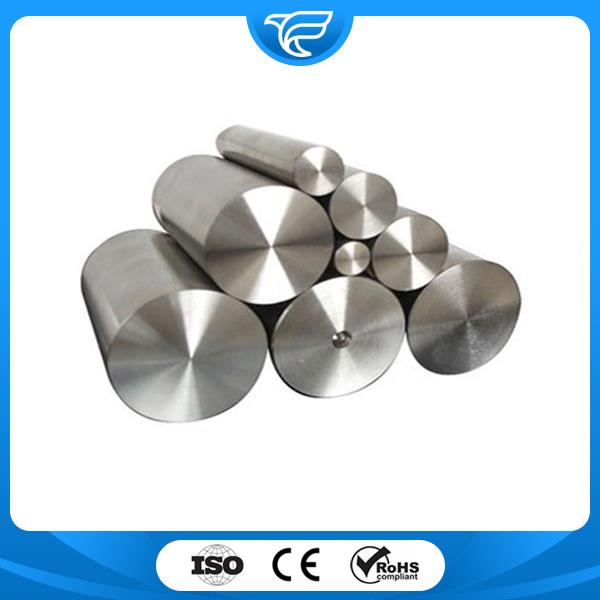

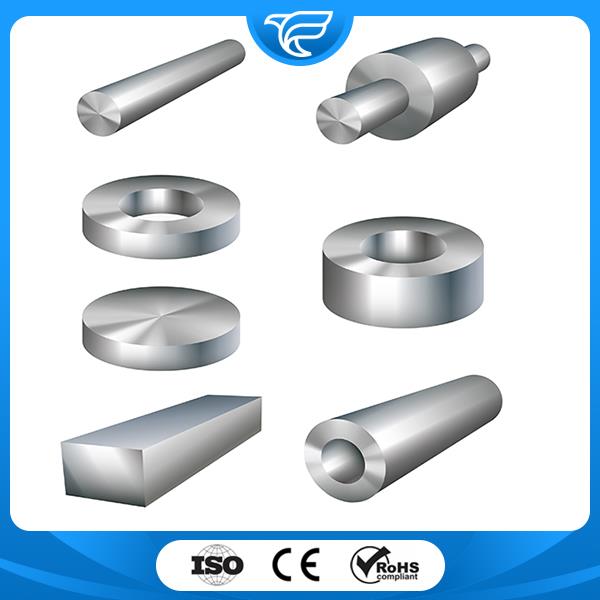

Product Show





Packaging and Delivery


  1. Standard  exporting package.

  2. Original  package or neutral package.

  3. According  to clients’ needs.

  4. Shipped  in 10-35 days after payment.
