Characteristic: oxidation resistance
Standard: ASME, ASTM, EN, UNS, GB, DIN, JIS
Certification: ISO, CE, ROHS
Payment Terms: T/T, L/C, Paypal, Western Union
Chemical Composition | ||||||||||||||||||
Element | C | Cr | Ni | Co | Mo | Al | Ti | Fe | B | Zr | Mn | Si | P | S | Cu | Ag | Bi | Pb |
Min | 0.12 | 14.00 |
| 18.00 | 4.50 | 1.18 | 1.18 |
| 0.003 | 0.070 |
|
|
|
|
|
|
|
|
max | 0.17 | 15.70 | remainder | 22.00 | 4.90 | 1.50 | 1.50 | 1.00 | 0.010 | 0.150 | 0.40 | 0.25 | 0.015 | 0.01 | 0.200 | 0.0005 | 0.0001 | 0.010 |
Nimonic 105 is Ni-Co-Cr base precipitation-hardening deformation high temperature alloy operating temperature is 750℃-950℃. The alloy has high room temperature and high temperature strength, good oxidation resistance, but the thermal processing performance and welding performance are common.

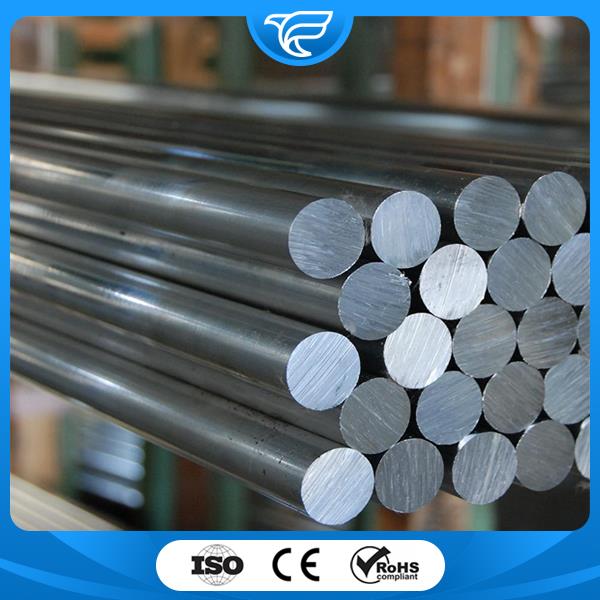

The main products are hot rolled bar and flat steel, cold drawing bar, profile and ring. The deformation resistance of the alloy is large, it should prevent cracking when forging and rolling, and the drawing temperature of cold drawing bar is 600℃.
Heat Treating Regime:
The blades are hot rolled and flat and forged, 1150℃±10℃ heat preservation 4h air cooling +1030℃±10℃ heat preservation 16h air cooling +700℃±5℃ heat preservation 16h air cooling
Cold drawn bar
1125℃±10℃ air cooling +850℃±10℃ heat preservation 16h air cooling. The solid solution heat preservation time: d≤3mm,1h; d>3m~6mm,2h; d>6mm~40mm,4h.
Nimonic 105 Application:
Aero-engine turbine blades, high temperature.
High temperature components such as bolts.
Fan seal.
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
