Characteristics: general corrosion resistance
Standard: ASME, ASTM, EN, UNS, GB, DIN, JIS
Certification: ISO, CE, ROHS
Payment Terms: T/T, L/C, Paypal, Western Union
Grade 304L Stainless Steel for Severely Corrosive Conditions is originally "18-8" stainless steel, much larger than other austenitic stainless steel production, 304 has good corrosion resistance in medium to medium oxidation environment. By controlling the content of nitrogen, 304 l can meet 304 mechanical performance requirements, so most products 304 and 304/304l and have double standards.
304/304L Stainless Steel Chemical Composition | |||||||||
| Ni | Cr | Mn | Si | C | S | P | N | Fe |
min | 8.0 | 18.0 | -- | - | - | - | - | - | - |
max | 10.5 | 20.0 | ≤2.0 | ≤1.0 | ≤0.08 | ≤0.03 | 0.045 | ≤0.10 | Balance |
Physical Performance | |||
Density | Melting Point | Poisson’s ratio | Specific resistance |
0.285lb/inch3 | 2550~2590℃ | 0.3 | 433Ohm-circ mil/ft |
Temperature, °F | 70 | 212 | 932 |
Coefficient of thermal expansion, in/in°F*10-6 | - | 9.2 | - |
Heat conductivity | - | 9.4 | 12.4 |
Elasticity modulus | 29 | - | - |
*70°F to indicated temperature.
304/304L Stainless Steel Characteristics:
Good resistance to general corrosion and easy to clean low temperature excellent strength and toughness good forming performance good welding performance.
Typical tensile property
Largest strength of extension, ksi | 75 |
0.2%yield strength, ksi | 30 |
Ductility,% | 40 |
HB,Brinell | 201 |
Typical tensile and impact properties
>
Temperature, °F | -425 | -320 | -100 | 70 | 400 | 800 | 1200 |
Largest strength of extension, ksi | 250 | 230 | 150 | 90 | 70 | 66 | 48 |
0.2%yield strength, ksi | 100 | 70 | 50 | 35 | 23 | 19 | 15.5 |
Charpy impact V notch,ft-lbs | 85 | 85 | - | 150 | - | - | - |
304/304L Stainless Steel application:
Food processing and processing.
Heat exchanger.
Pressure vessels for the chemical industry.
Conveyer.
Architecture.
Standard exporting package.
Original package or neutral package.
According to clients’ needs.
Shipped in 10-35 days after payment.
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal

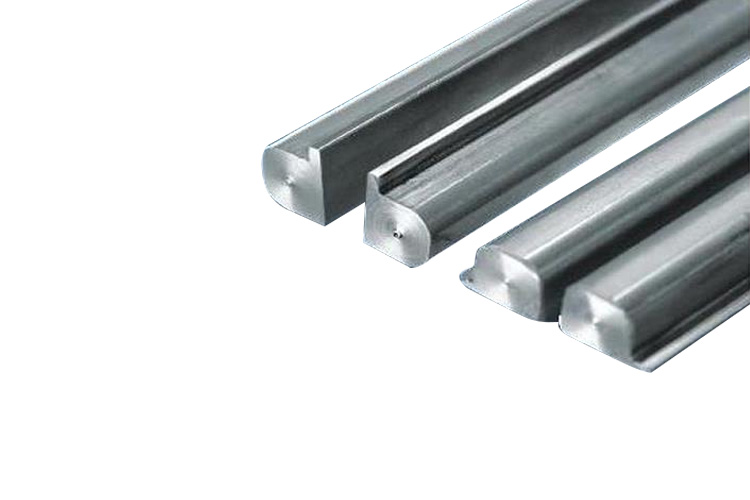

Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
